Metro B-Plate Casters for Made-to-Order Truck Dollies

SKU:
B-PLATE-CASTER

Product Description

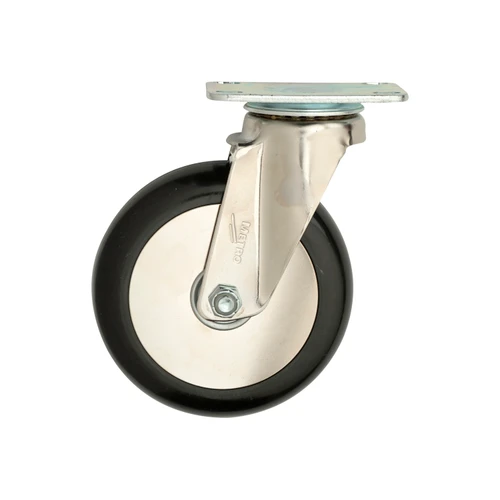

Metro B-Plate Casters for Made-to-Order Truck Dollies

Use in conjunction with Metro Made-to-Order truck dollies to assemble a heavy-duty mobile base for your needs. B-plate casters offer the basic impact resistance when overcoming thresholds and ramps within a facility. Swivel casters provide 360 degrees of rotation to enable easy maneuvering of carts in tight spaces. Swivel/Brake casters are easy to rotate with an added wheel brake to keep a cart in a fixed position when not in use. Wheel brakes are foot operated. Rigid casters are fixed to help steer a cart in a straight path over long distances. Plate measures 2.375" x 3.625" (60 x 92mm); .15625" (4mm) thick.

Frequently Bought Together

Specifications

Product Name
Metro B-Plate Casters for Made-to-Order Truck Dollies
Model
B-PLATE-CASTER
Material
Heavy Gauge Non-polished Stainless Steel Horn. Polyurethane Flat Tread with Polyolefin Hub.
Color
Silver/Gray
Actual Width
2.375
Actual Height
6.25
Approximate Packaged Weight (lbs.)
2.1
Load Capacity
300
Actual Length
5.8125
Number of Wheels
1
Wheel Size (inches)
5
Wheel Material
Polyurethane
Non-Marking
true
{"B5PGSA":{"Product Name":"Metro B5PGSA 5″ Polyurethane Swivel B-Plate Caster for Made-to-Order Truck Dollies","Part Number":"B5PGSA","UPC Code":"0-41105-42708-8","Product Width":"2.375″","Product Length":"5.8125″","Product Height":"6.25″","Approximate Package Weight":"2.1 lbs.","Load Capacity":"300 lbs.","Material":"Heavy Gauge Non-polished Stainless Steel Horn. Polyurethane Flat Tread with Polyolefin Hub.","Color":"Silver/Gray","Caster Style":"Swivel B-Plate","Caster Horn Material":"Stainless","Number of Wheels":"1","Wheel Size":"5″","Wheel Material":"Polyurethane","Load Height":"6.5″","Tread Width":"1.25″","Cart-Washable":"Yes","Non-Marking":"Yes","Warranty":"Product will be free from defects in material and workmanship under normal use, service and maintenance for a period of one (1) year from the date of shipment of the Product by Seller, unless otherwise specified by Seller in writing."},"B-PLATE-CASTER":{"Product Name":"Metro B-Plate Casters for Made-to-Order Truck Dollies","UPC Code":"0-41105-42699-9","Product Width":"2.375″","Product Length":"5.8125″","Product Height":"6.25″","Approximate Package Weight":"2.3 lbs.","Load Capacity":"225 lbs.","Material":"Heavy Gauge Cold Rolled Steel Nickel Plated Horn. Neoprene Solid Donut Rubber Wheel with Nickel Side Plates.","Color":"Silver/Black","Caster Style":"Swivel/Brake B-Plate","Caster Horn Material":"Plated","Number of Wheels":"1","Wheel Material":"Neoprene","Load Height":"6.5″","Tread Width":"1.375″","Cart-Washable":"No","Non-Marking":"Yes","Warranty":"Product will be free from defects in material and workmanship under normal use, service and maintenance for a period of one (1) year from the date of shipment of the Product by Seller, unless otherwise specified by Seller in writing."},"B5DN":{"Product Name":"Metro B5DN 5″ Neoprene Swivel B-Plate Caster for Made-to-Order Truck Dollies","Part Number":"B5DN","UPC Code":"0-41105-42698-2","Product Width":"2.375″","Product Length":"5.8125″","Product Height":"6.25″","Approximate Package Weight":"2.1 lbs.","Load Capacity":"225 lbs.","Material":"Heavy Gauge Cold Rolled Steel Nickel Plated Horn. Neoprene Solid Donut Rubber Wheel with Nickel Side Plates.","Color":"Silver/Black","Caster Style":"Swivel B-Plate","Caster Horn Material":"Plated","Number of Wheels":"1","Wheel Size":".″","Wheel Material":"Neoprene","Load Height":"6.5″","Tread Width":"1.375″","Cart-Washable":"No","Non-Marking":"Yes","Warranty":"Product will be free from defects in material and workmanship under normal use, service and maintenance for a period of one (1) year from the date of shipment of the Product by Seller, unless otherwise specified by Seller in writing."},"B5PB":{"Product Name":"Metro B5PB 5″ Polyurethane Swivel/Brake B-Plate Caster for Made-to-Order Truck Dollies","Part Number":"B5PB","UPC Code":"0-41105-42704-0","Product Width":"2.375″","Product Length":"5.8125″","Product Height":"6.25″","Approximate Package Weight":"2.3 lbs.","Load Capacity":"300 lbs.","Material":"Heavy Gauge Cold Rolled Steel Nickel Plated Horn. Polyurethane Flat Tread with Polyolefin Hub.","Color":"Silver/Gray","Caster Style":"Swivel/Brake B-Plate","Caster Horn Material":"Plated","Number of Wheels":"1","Wheel Size":"5″","Wheel Material":"Polyurethane","Load Height":"6.5″","Tread Width":"1.25″","Cart-Washable":"No","Non-Marking":"Yes","Warranty":"Product will be free from defects in material and workmanship under normal use, service and maintenance for a period of one (1) year from the date of shipment of the Product by Seller, unless otherwise specified by Seller in writing."},"B5P":{"Product Name":"Metro B5P 5″ Polyurethane Swivel B-Plate Caster for Made-to-Order Truck Dollies","Part Number":"B5P","UPC Code":"0-41105-42701-9","Product Width":"2.375″","Product Length":"5.8125″","Product Height":"6.25″","Approximate Package Weight":"2.1 lbs.","Load Capacity":"300 lbs.","Material":"Heavy Gauge Cold Rolled Steel Nickel Plated Horn. Polyurethane Flat Tread with Polyolefin Hub.","Color":"Silver/Gray","Caster Style":"Swivel B-Plate","Caster Horn Material":"Plated","Number of Wheels":"1","Wheel Size":"5″","Wheel Material":"Polyurethane","Load Height":"6.5″","Tread Width":"1.25″","Cart-Washable":"No","Non-Marking":"Yes","Warranty":"Product will be free from defects in material and workmanship under normal use, service and maintenance for a period of one (1) year from the date of shipment of the Product by Seller, unless otherwise specified by Seller in writing."},"B5DNR":{"Product Name":"Metro B5DNR 5″ Neoprene Rigid B-Plate Caster for Made-to-Order Truck Dollies","Part Number":"B5DNR","UPC Code":"0-41105-42700-2","Product Width":"2.375″","Product Length":"5″","Product Height":"6.25″","Approximate Package Weight":"2 lbs.","Load Capacity":"225 lbs.","Material":"Heavy Gauge Cold Rolled Steel Nickel Plated Horn. Neoprene Solid Donut Rubber Wheel with Nickel Side Plates.","Color":"Silver/Black","Caster Style":"Rigid B-Plate","Caster Horn Material":"Plated","Number of Wheels":"1","Wheel Size":"5″","Wheel Material":"Neoprene","Load Height":"6.5″","Tread Width":"1.375″","Cart-Washable":"No","Non-Marking":"Yes","Warranty":"Product will be free from defects in material and workmanship under normal use, service and maintenance for a period of one (1) year from the date of shipment of the Product by Seller, unless otherwise specified by Seller in writing."},"B5PRGSA":{"Product Name":"Metro B5PRGSA 5″ Polyurethane Rigid B-Plate Caster for Made-to-Order Truck Dollies","Part Number":"B5PRGSA","UPC Code":"0-41105-42714-9","Product Width":"2.375″","Product Length":"5″","Product Height":"6.25″","Approximate Package Weight":"2 lbs.","Load Capacity":"300 lbs.","Material":"Heavy Gauge Non-polished Stainless Steel Horn. Polyurethane Flat Tread with Polyolefin Hub.","Color":"Silver/Gray","Caster Style":"Rigid B-Plate","Caster Horn Material":"Stainless","Number of Wheels":"1","Wheel Size":"5″","Wheel Material":"Polyurethane","Load Height":"6.5″","Tread Width":"1.25″","Cart-Washable":"Yes","Non-Marking":"Yes","Warranty":"Product will be free from defects in material and workmanship under normal use, service and maintenance for a period of one (1) year from the date of shipment of the Product by Seller, unless otherwise specified by Seller in writing."},"B5PR":{"Product Name":"Metro B5PR 5″ Polyurethane Rigid B-Plate Caster for Made-to-Order Truck Dollies","Part Number":"B5PR","UPC Code":"0-41105-42713-2","Product Width":"2.375″","Product Length":"5″","Product Height":"6.25″","Approximate Package Weight":"2 lbs.","Load Capacity":"300 lbs.","Material":"Heavy Gauge Cold Rolled Steel Nickel Plated Horn. Polyurethane Flat Tread with Polyolefin Hub.","Color":"Silver/Gray","Caster Style":"Rigid B-Plate","Caster Horn Material":"Plated","Number of Wheels":"1","Wheel Size":"5″","Wheel Material":"Polyurethane","Load Height":"6.5″","Tread Width":"1.25″","Cart-Washable":"No","Non-Marking":"Yes","Warranty":"Product will be free from defects in material and workmanship under normal use, service and maintenance for a period of one (1) year from the date of shipment of the Product by Seller, unless otherwise specified by Seller in writing."},"B5PBGSA":{"Product Name":"Metro B5PBGSA 5″ Polyurethane Swivel/Brake B-Plate Caster for Made-to-Order Truck Dollies","Part Number":"B5PBGSA","UPC Code":"0-41105-42705-7","Product Width":"2.375″","Product Length":"5.8125″","Product Height":"6.25″","Approximate Package Weight":"2.3 lbs.","Load Capacity":"300 lbs.","Material":"Heavy Gauge Non-polished Stainless Steel Horn. Polyurethane Flat Tread with Polyolefin Hub.","Color":"Silver/Gray","Caster Style":"Swivel/Brake B-Plate","Caster Horn Material":"Stainless","Number of Wheels":"1","Wheel Size":"5″","Wheel Material":"Polyurethane","Load Height":"6.5″","Tread Width":"1.25″","Cart-Washable":"Yes","Non-Marking":"Yes","Warranty":"Product will be free from defects in material and workmanship under normal use, service and maintenance for a period of one (1) year from the date of shipment of the Product by Seller, unless otherwise specified by Seller in writing."},"B5DNB":{"Product Name":"Metro B5DNB 5″ Neoprene Swivel/Brake B-Plate Caster for Made-to-Order Truck Dollies","Part Number":"B5DNB","UPC Code":"0-41105-42699-9","Product Width":"2.375″","Product Length":"5.8125″","Product Height":"6.25″","Approximate Package Weight":"2.3 lbs.","Load Capacity":"225 lbs.","Material":"Heavy Gauge Cold Rolled Steel Nickel Plated Horn. Neoprene Solid Donut Rubber Wheel with Nickel Side Plates.","Color":"Silver/Black","Caster Style":"Swivel/Brake B-Plate","Caster Horn Material":"Plated","Number of Wheels":"1","Wheel Size":"5″","Wheel Material":"Neoprene","Load Height":"6.5″","Tread Width":"1.375″","Cart-Washable":"No","Non-Marking":"Yes","Warranty":"Product will be free from defects in material and workmanship under normal use, service and maintenance for a period of one (1) year from the date of shipment of the Product by Seller, unless otherwise specified by Seller in writing."}}
